Vending Machine

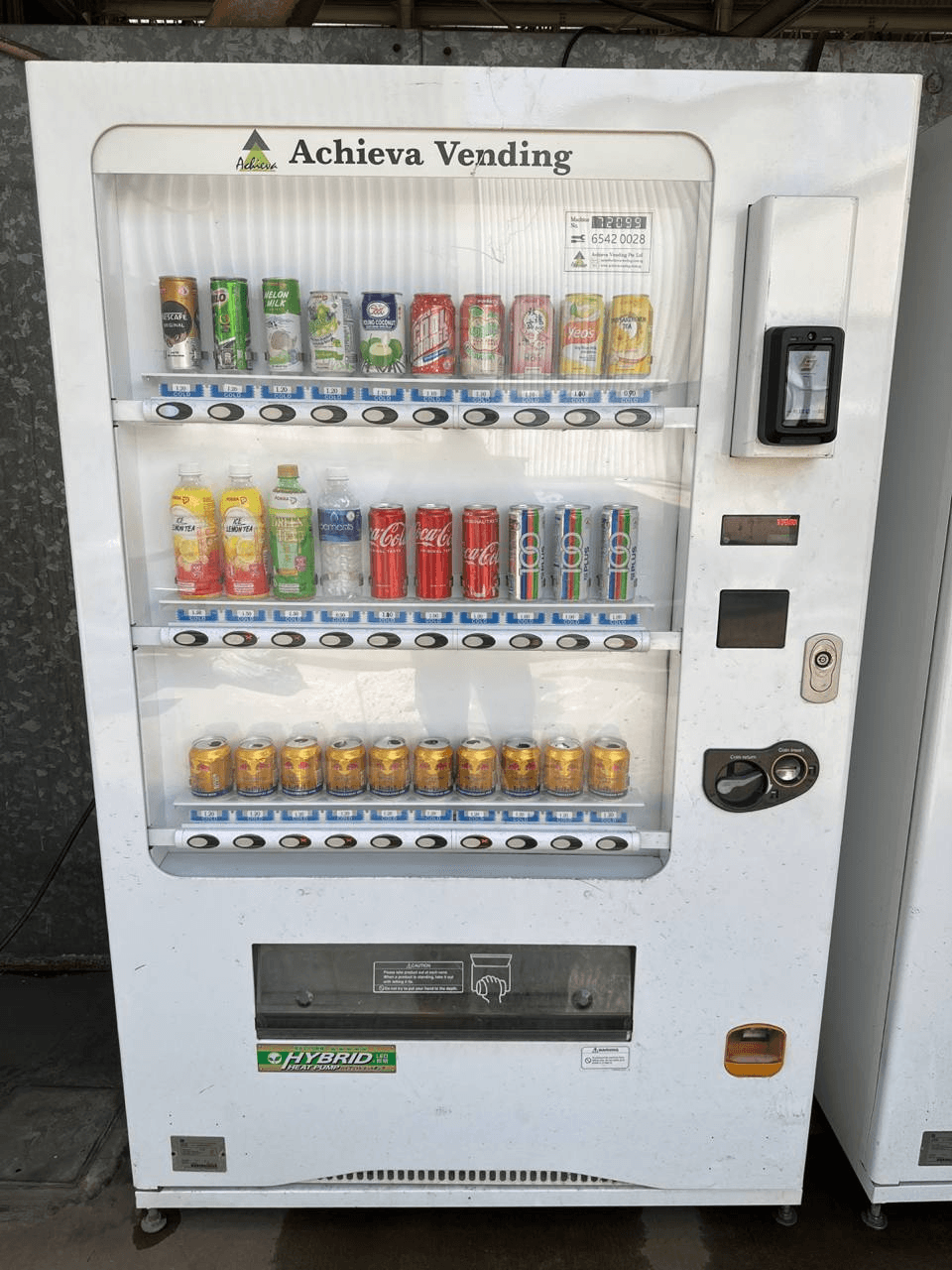

FAA30L6RT5NY-SG

Fuji Electric

list ordered list-item Protocol Support : MDB L2/L3, JPSTD list-item Number of Selections and Columns : 30 paragraph heading Switching between VCCS and MDB Modes paragraph This...

  1. Protocol Support : MDB L2/L3, JPSTD
  2. Number of Selections and Columns : 30

Switching between VCCS and MDB Modes

This machine supports both VCCS and MDB protocols for its payment peripherals. The Vending Machine must be set into is respective protocol, to be able to work with the adequate protocol supported by the card reader.

When the machine switches between VCCS and MDB Modes, pricing of each item will be wrong, due to conversion between JPY and local currency. There is a need to set the price of each item again. Also, the meter readings from the machine, in terms of amount collected, will also be off.

Enabling Cashless Payments

To enable cashless payments on this machine, edit these settings in the controller menu

  • 3-26 :
  • 0 for MDB1 for VCCS
  • 3-71
  • 0 for VCCS Card Reader1 for RS232 Interface2 Reserved3 MDB Card Reader
